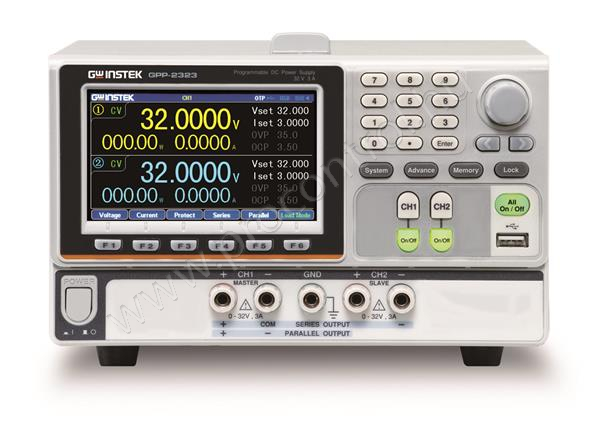

GWInstek GPP-2323 Programmable D.C. Power Supply
Brief description
With the maximum output power of 217W, the GPP-Series, the multi-channel programmable DC power supply, includes four models: GPP-1326 (0~32V/0~6A) for single-channel output and GPP-2323 for dual-channel output (CH1:0~32V/0~3A, CH2: 0~32V/0~3A), GPP-3323 for three-channel output (CH1: 0~32V/0~3A, CH2:0~32V/0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0V/5A) and GPP-4323 for four-channel output (CH1:0~32V/0~3A, CH2:0~32V/0~3A, CH3:0~5V/0 ~1A, CH4: 0~15V/0~1A). This series not only provides high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics ?350uVrms/?2mArms and output transient recovery capability?50S. Independent output on-off switch is provided for each channel.
Properties
-
4.3”TFT LCD Display
-
Supports Setting Value, Measurement Value and Output Waveform Display
-
Load Function (CC, CV, CR Mode)
-
Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
-
Low Ripple Noise: ?350uVrms/ ?2mArms
-
Transient Response Time: ?50uS
-
Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
-
Delay Function / Output Monitoring Function / Output Recorder Function
-
Intelligent Temperature Control Fan Effectively Reduces Noise
-
Sequential Output Function and Built-in 8 Template Waveforms
-
The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second
-
Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
-
GPP-3323 Supports A USB (Type A) Output Terminal
-
Standard: RS-232, USB, Ext I/O ; Optional: LAN, GPIB+LAN
-
Compatible with Commands of GPD-x303S Series
Package contains
-
Test Lead GTL-104A x 1, GTL-105A x 1
-
Optional Accessories:
-
GTL-246 USB Cable
-
GRA-437-J Rack Mount Kit(JIS)
-
GRA-437-E Rack Mount Kit(EIA)
Mentés
|
Product Code: |
350471 |
Manufacturer: |
GW Instek
|
Pieces/Packages:
|
1 pcs
|
Minimum order quantity:
|
1 pcs
|
|
